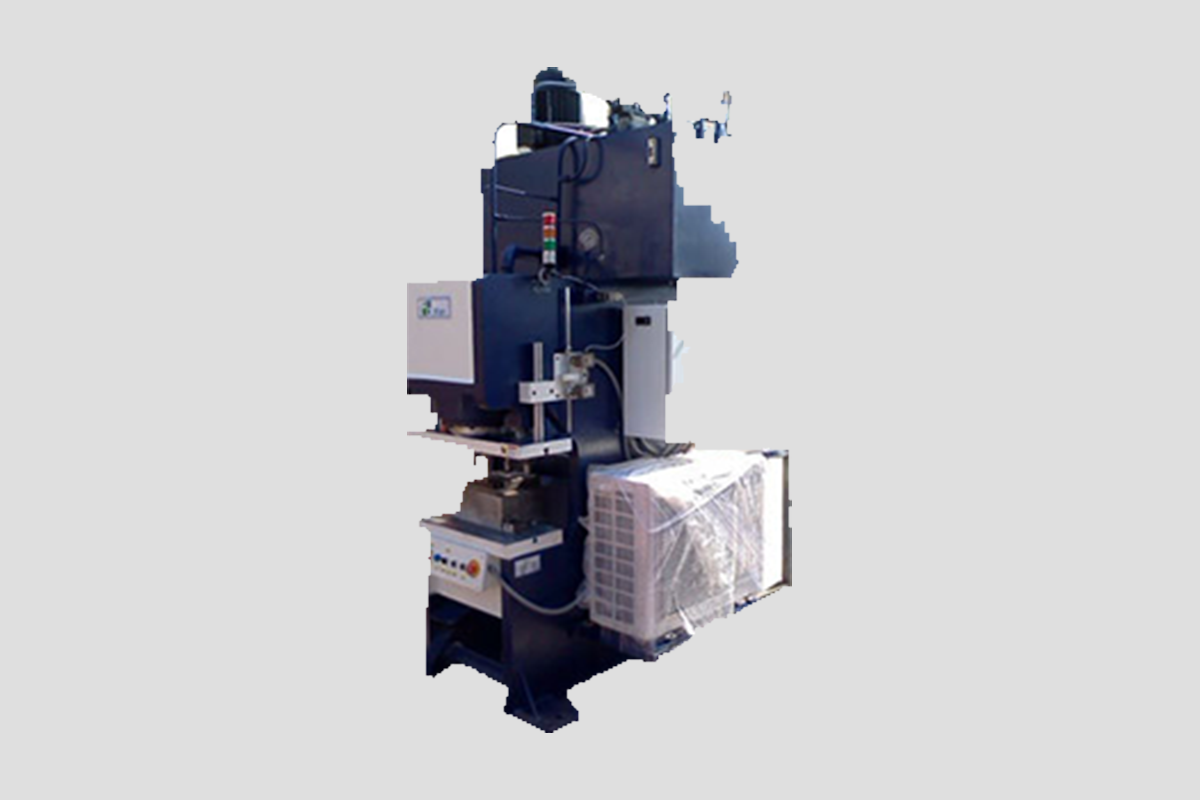

iPan Brand IP CP Series Hydraulic Punching Machine is used to cut holes of any shapes in materials. There are multiple type of punching machines used to cut holes on Metal sheets such as MS/SS/Aluminium/Copper/Brass etc. Hydraulic Punching machine can also punch Angle, I-beam, Plates and C Channel. Punching Shapes can include oblong hole punching, slot hole punching, round hole punching and square hole punching and many others as required.
Available Models:
- Machine Capacity : 50MT/75MT/100MT/150MT
- Standard Table Size: As per requirement
Design Features
- Single cylinder
- Accurate clearance between RAM and TABLE plate
- Adjustable Pressure Relief / Controlling Valve for HT material.
- T-Slot on table for fix clamping of Die and Punch.
- Adjustable strokes to reduce travelling time & for more production.
- Indication light (Tower Light) with safety alarm sound.
- Emergency stop push button.
- Compact size machine Standard Accessories Including Machine
- 2 pair of Foot switch for easier operation with movable vertical operating console with nos. of switches
- Limit Switch and Pressure Switch assembly for short and heavy job
- Available from standard to special purpose sizes
- Adjustable Pressure Relief valve and pressure switch
- Front operating console for easy and fast operation having ON-OFF / UP-DOWN / EMERGENCY STOP and Overload switches.
Used For
- Punching
- Stamping
- Numbering
- Deep drawing
- Ambossing
- Broching
Standard Accessories Including Machine
- Foot switch for easier operation
- Limit Switch and Pressure Switch assembly for short and heavy job
- Front operating console for easy and fast operation having On-Of / Up-Down / Emergency Stop and Overload switches
